StampaJet
textile digital printing reinvented

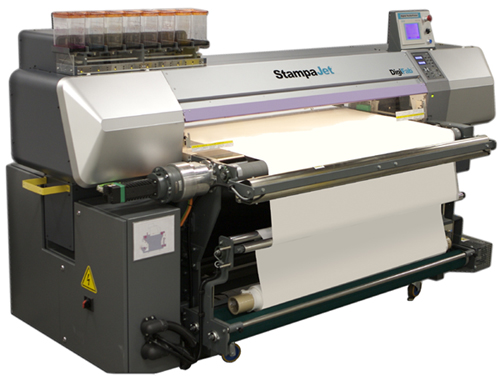

StampaJet a
new generation high speed textile printer, utilizing a self-cleaning
adhesive belt transport system, designed for digital fabric printers who
require fabric variety with high print speeds and exceptional quality. The
StampaJet
with its speed potential, ink and fabric versatility and color
control, combined with a competitive price and small footprint opens new
opportunities to textile digital printing.
Download PDF
585
ft2/h Plug & Print digital textile printer
Industrial scale textile digital printing is
finally made easy thanks to the StampaJet's
top quality print results at production speeds of up to 39 linear yards
per hour*. The machine is delivered fully assembled and tested, with
Evolution Textile RIP ® software which makes it ready to print. It is
sufficient to connect the electric power, air, water, load the inks and
go. *Depending on color number, resolution and pass - see the production
table on the back side of the brochure.
New
print heads, speed, safety and quality
The
StampaJet
comes with the new extra wide variable dot Epson print heads, with 1440
nozzles per head, 4 times more the conventional print heads. The distance
from the print heads and the fabric surface is automatically controlled by
a sensor. A sophisticated laser device checks on the fly nozzle efficiency
and prevents print faults.
Extra precision with the new belt drive
The adhesive fabric
transportation belt prevents even the smallest movement of the substrate
once in position, and ensures perfect registration. A precision twin roll
unwind mechanism with photocell edge sensor guides the fabric precisely
and smoothly onto the belt, whose glue is activated by heat, making the
StampaJet
ideal to print also on stretch fabrics without distortion.
Rotating cleaning unit
A rotating brush
washing unit with open water circuit prevents 'back printing' by removing
the excess of ink from the adhesive blanket. The entire washing unit is
mounted on rails and can be extracted with ease for inspection and
cleaning.
Hot
air infrared dryers
StampaJet
ships with two hot air infrared dyers. One before the printed fabric
rewind station to dry printed fabric and the other one just after the
washing unit to dry out water traces from the belt, and pre-heat the
blanket's surface to optimal working temperature of the thermoplastic
adhesive.
Bulk ink supply system
The
StampaJet
can print with all acid, reactive, disperse, pigment and sublimation inks
via a large capacity bulk ink feed system.
|
|
MODEL |
StampaJet |
|
PRINTER |
Variable dot piezo
print heads |
|
Print heads -
COLORS |
4 extra wide 1440 nozzles piezo print heads
Each head 8 colors, 8 x180 nozzle rows |
|
Print heads level |
Automatic print head level adjustment from substrate: 0 -7 mm |
|
Print head
cleaning |
Automatic print head cleaning cycle - automatic laser
nozzles check |
|
PRINT RESOLUTIONS
|
540 - 720 - 900 - 1080 - 1440 dpi a 4,6,8,12,16 pass -
Unidirectional &
Bidirectional |
|
Fabric transport
|
Twin roll unwind unit with edge sensor - Adhesive
blanket – Twin roll rewind unit |
|
Print width, roll
size |
Maximum print width: 161 cm (63,3”) - maximum fabric roll
diameter: 28 cm. ( 11”) |
|
Print speed |
4 Colors: 540x720
dpi, 4 pass, bidirectional, 585 ft2/h or 39 linear yd/h
8 Colors: 540x720 dpi, 6 pass, bidirectional, 375 ft2/h or 25 linear
yd/h
8 Colors: 720x720 dpi, 8 pass, bidirectional, 315 ft2/h or 21 linear
yd/h
8 Colors: 1440x1440 dpi, 16 pass, bidirectional, 120 ft2/h or 8 linear
yd/h |
|
Ink feed system |
Ink feed system 2 x 8 cartridges or optional external bulk feed
system with 2 x 8 1500-2000 cc. tanks |
|
Inks |
Acid, Reactive, Disperse, Pigments,
Sublimation
4 colors: CMYK
8 colors: CMYK, red, blue, orange, grey |
|
Interface |
USB 2.0 |
|
Noise level
|
< 50 db |
|
Dimensions |
Width:
10.5 ft - Depth: 5.25 ft - Height: 4.9 ft - Weight: 2,200 lb |
|
Electric supply |
Printer: Ac200V - 240V - 50/60Hz
Belt system : 3 Phase 240V - 50/60Hz - 9 kw installed power - working power
approx. 3 Kwh - CE |
|
Working environment |
Temperature range: 20-35 °C
/ 68-95 °F - Humidity 35%-65% rh |
